MC/UV Vacuum Coater

Featuring UV cured, four-sided coating utilizing Stanza’s “Free Flow” technology. UV Vacuum Coating offers immediate curing in a small footprint.

Our STM Series UV-Based Vacuum Coaters are designed to coat linear profiles with maximum uniformity and 99% transfer efficiency.

The system consists of a separation tower, vacuum producer, control panel, and a unique application chamber. This application chamber, featuring our “Free Flow Technology”, enhances coating consistency at lower vacuum pressures. This lessens energy consumption, while permitting higher feed speeds. The chamber is also designed for quick, tool-free changeover, resulting in maximized production up-time. The programmable logic controller (PLC) driven system interlocks with machines in line, enabling process integration.

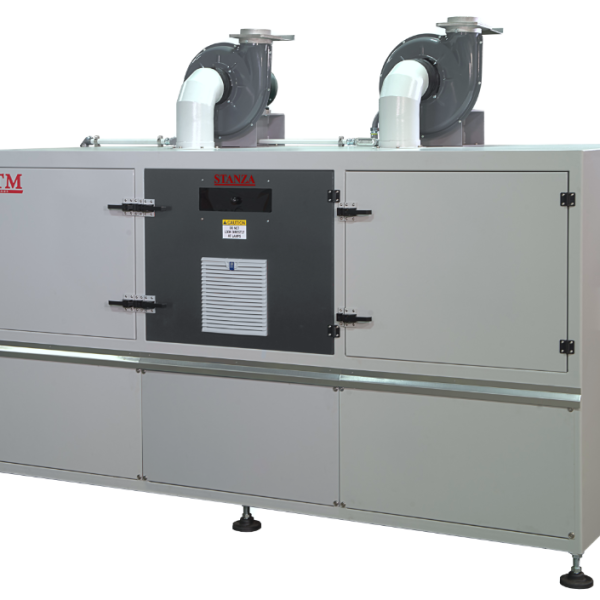

Our UV Curing Oven, in combination with the vacuum coater, allows for immediate curing in a small footprint at high feed speeds. UV Coatings will cure only with the presence of a UV light source.

Our STM Series Vacuum Coaters are designed and manufactured in the USA, and are customizable with a range of options and special configurations to suit your production needs.


The MC/UV can be outfitted with specialized components such as:

  • Teflon Coating
  • Open seam
  • Remote Panel Access
  • Custom Specified Electrical Components
  • Auto Fill
  • And more




Construction Polished Stainless Steel
Max Width Up to 12″
Minimum Length 48”
Application speeds 40-350 fpm, depending on profile
Pump 1″ double diaphragm
Reservoir capacity 15 gallons
Filtration Stainless Steel Media x4
Vacuum Producers 10/15 HP x2
Operator Controls: Remote panel/PLC control
Electrical: 480V 3ph 60Hz
Air: 2 CFM at 90 psi
Machine Tower Dimensions: 54”W x 60”H x 27”D
Auto Fill (optional): Electronic
Fluid Heating System (optional): Inline recirculating
