MUV Series UV Curing Ovens

Stanza MUV series UV ovens are design to cure 100% solid UV coatings, applied by vacuum coaters and spray machines to pipe and tube.

Stanza MUV series UV ovens are design to cure 100% solid UV coatings, applied by vacuum coaters and spray machines to pipe and tube. The system utilizes both top and bottom curing units for complete 360-degree curing. Lamp power is variable, and the lamp housings are adjustable for maximum effectiveness. The MUV is available in a range of various configurations of lamp number, layout and type.



Made in the USA, Stanza curing ovens can be highly customized to meet individual production needs such as higher feed speeds and extreme curing capabilities.

VIDEO

SPECIFICATIONS

Workpiece Max Diameter: 6″
Materials: Steel rounds and squares
Feed Speed: 50-250 feet per minute
Lamp Type: Microwave UV
UV Lamp Configuration: 3-12 lamps
Lamp Options: Mercury/Gallium
Lamp Power: 600 watts/inch
Lamp Intensity: Variable

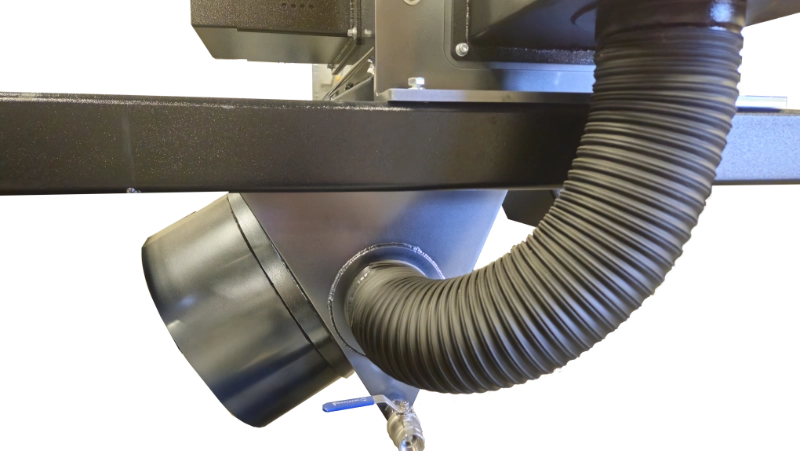

Air Management: Intake and exhaust fans
Voltage: 480V 3Ph 60Hz
Machine Dimensions: 69″L x 65″D x 60″H
