TW Series High Pressure Wash System

Customizable modular system designed for washing, degreasing, surface treating, and drying.

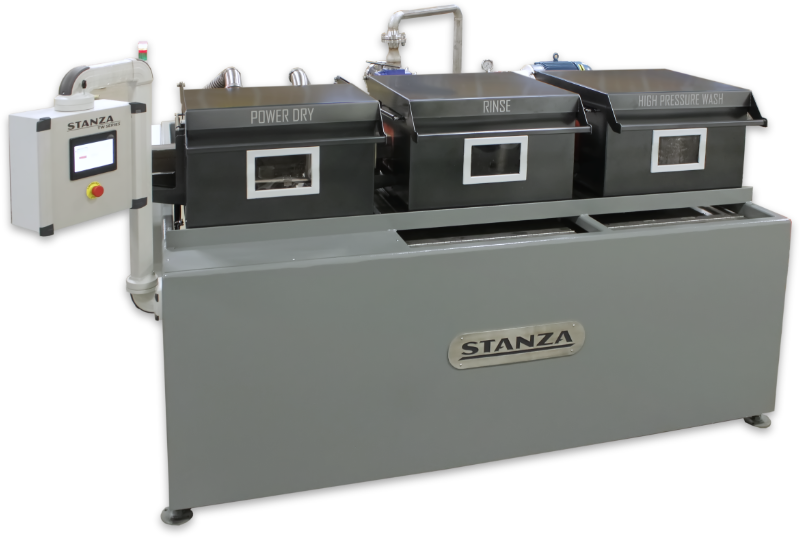

The Stanza TW-H Model tube and pipe washer is a unique and flexible system. Utilizing a modular approach, it is designed to upgrade cleaning operations in your mill line. By specifically targeting each operation in the cleaning and drying process, the mill engineer has the ability to choose the number and type of module for each specific process. The modules can then be custom sized to available line space for a perfect fit!

Process choices include:

  • High & Low pressure heated wash
  • Phosphate Treating
  • Rinse
  • Blow-Off & Dry

VIDEO

SPECIFICATIONS

Construction: Epoxy-coated stainless steel
Stock Modules: High Pressure wash, Rinse, Blow-Off
Tube Diameter: Up to 6″
Available PSI Up to 1000 psi
Tank Capacity
(maximum allowed fill):
182 gallons

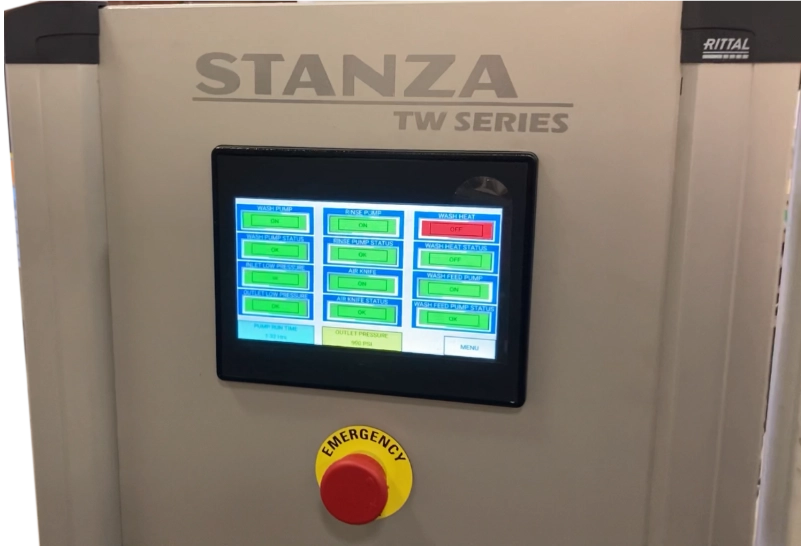

Operator Controls: Integrated touchscreen controls
Electrical Requirements: 480V 3ph 60Hz
Water/Plumbing Requirements: 1″ diameter fill line, drain to waste
Stock Machine Dimensions: 108”W x 52”H x 82.5”D
