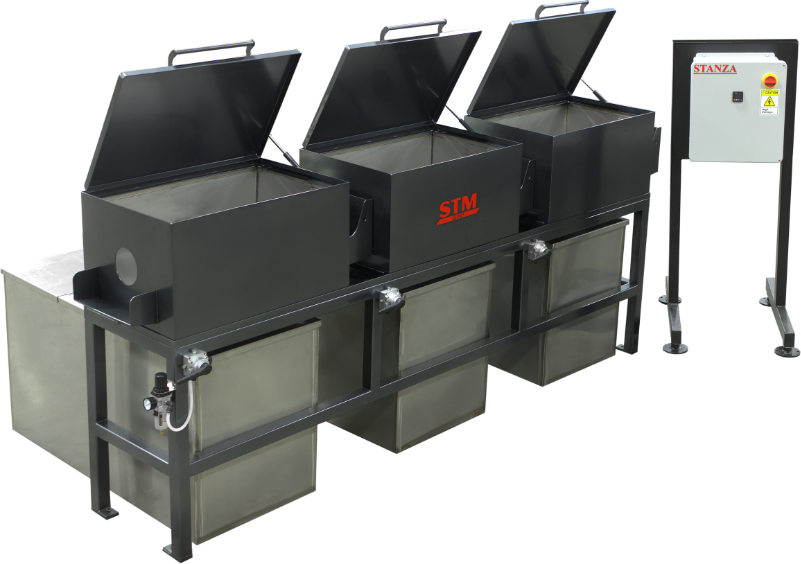

TW Series Wash System

Customizable modular system designed for washing, degreasing, surface treating, and drying.

The Stanza TW Series tube and pipe washer is a unique and flexible system. Utilizing a modular approach, it is designed to upgrade cleaning operations in your mill line. By specifically targeting each operation in the cleaning and drying process, the mill engineer has the ability to choose the number and type of module for each specific process. The modules can then be custom sized to available line space for a perfect fit!

Available Options Include:

  • Custom designed tank arrangements (2-8 tanks)
  • Stainless steel construction for chemical resistance
  • Pressure and rinse nozzles
  • Individual heating to tanks
  • Squeegee units standard

VIDEO

SPECIFICATIONS

Construction: Epoxy Coated Stainless Steel
Stock Modules: Phosphate Wash, Standard Rinse, Blow-off
Tube Diameter: Up to 6” diameter
Tank Capacity
(max allowable fill):
100 gallons
Operator Controls: Integrated Touchscreen w/remote option available
Electrical Requirements: 480V 3ph 60Hz
Water/Plumbing Requirements: 1″ dia. fill line, drain to waste
Stock Machine Dimensions: 120”W x 56”H x 96”D
