WB Wire Brush Machine

The perfect cost-effective brushing solution for deep, medium and light wire brushing effects.

Category:

The Stanza Wire Brush-Master/Denibber represents the finest in European design and manufacture, resulting in beautiful sanding results for a wide range of applications and creations. The WB series features heavy duty construction, a small foot print, and can be fitted with a wide range of wire brush grits and sizes. One machine can be used for a variety of brushing grits and styles.  Changing out the heads is easy, and user-friendly. Simply slide out the station and slide in another unit.

The WB Wire Brush series offers:

  • Separate variable speed adjustment between sanding rollers
  • Fixed table for in line operation.
  • Height adjustment of sanding drums
  • Individual station control of direction and speed.
  • Easy changing of abrasives
  • Quick change carriage system for easy slide in/out
  • Spring-loaded pressure rollers
  • Chain driven conveyor rollers.
  • Digital readout for settings

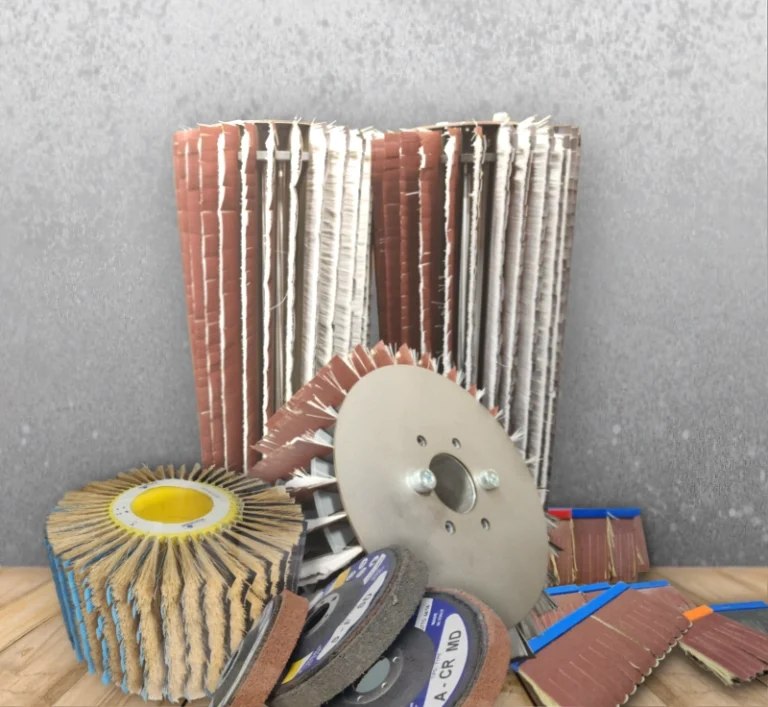

  • Various options for abrasives/wire brush/vacuum bed

SPECIFICATIONS

Work Piece max. width: 24”, 39” & 52”, larger upon request
Work piece max. height: 4”
Feed Speeds: 6-75 fpm
Feed Motor: 10 HP wire brush/ 3 hp Tynex
Head Speeds: 100-800 rpm adjustable
Head Drive: Reduction pulley with inverter control
Sanding Stations: 1-infinite
Control Panel: Attached
Motor Reversal: Quick Switch
Motor Speeds: Potentiometer with digital readout
Sanding Head Options: Wire brush, Cross-belt, Denib, and more
Sanding Roller Diameter: 12”
Height Adjustment: Handwheel with digital counters
Conveyor Format: Fixed table
Machine Options: Vacuum table, Quick-change trolley, Top/Bottom/Side units for custom profiles
Electrical: 480V, 3 ph, 60Hz



ACCESSORIES

  • Specialty wire brushes
  • Vacuum table and blower
  • High-grip, no-slip belt
  • Close hold down rollers
  • Bottom/side rollers and more
